550KW Chiller
- Operates in ambient temperatures of up to +45°C
- Capacity control with 6 no. scroll compressors
- EC fans included

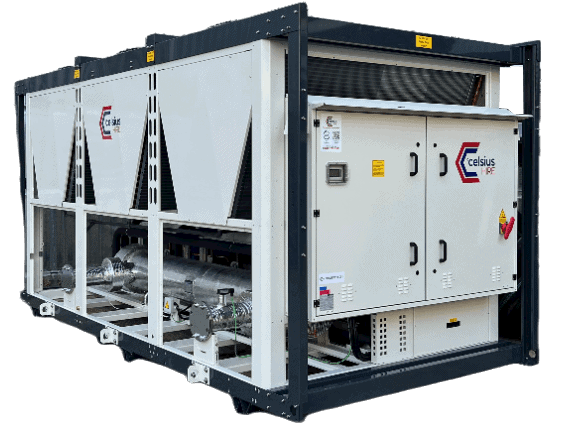

Celsius Hire’s 550KW CHILLER is an eco-design compliant model offering a large temperature range thanks to a refrigerant circuit composed of R410A and 6 no. scroll compressors. This allows capacity control for smaller and variable heat loads. The model has a compact footprint, but with its efficient design is able to operate in ambient temperatures of up to 45°C.
The unit is complete with a shell and tube evaporator, flow switch and associated safety switches. This, coupled with Celsius Hire’s full supporting range of pump sets, buffer tanks, cables and hoses allows installation on a wide range of applications, from process cooling to HVAC systems.
550KW Chiller Specification
Cooling Capacity
550KW
Temperature Range (Fluid Leaving)
-10°C – +20°C
Size
4305mm x 2100mm x 2280mm
Weight (DRY)
3,770KG
Design Fluid Flow
27L/S
Electrical Supply Voltage
410V
Max Running Current
361A (per phase)
