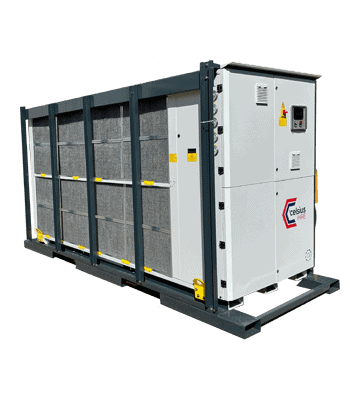

70KW Low Temp Chiller
Celsius Hire 70KW Low Temp Chiller is a compact, small footprint unit, selected due to its flexibility and handling across a variety of applications. It is an air-cooled chiller, designed to operate down to a minimum water/glycol set point of -30°C. This allows use for process cooling solutions requiring lower temperatures, in addition to being used alongside Celsius Hire's range of fan coil units to provide temporary solutions in industrial freezer rooms.
The chiller has a circuit comprised of R455A and has 2 no. Semi hermatic compressors. The chillers benefit from an integral circulation pump and will be selected with an external buffer tank, enabling steady water/glycol temperatures as a result of increased volume.
70KW Low Temp Chiller Specification
| Cooling Capacity | 70KW |
| Max Running Current | 220A (per phase) |
| Design Fluid Flow | 4.0L/S |
| Temperature Range (Fluid Leaving) | -30°C to -10°C |
| Size | 3930mm x 1600mm x 2120mm |
| Weight | 1,600kg |
| Electrical Supply Voltage | 410V |
| Internal Pump (Y/N) | Yes |
