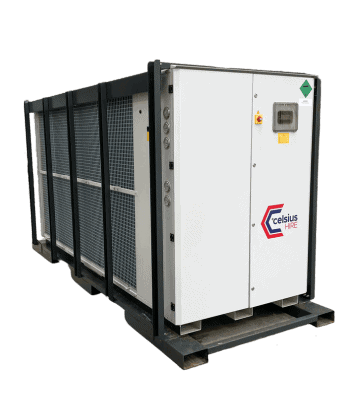

300KW Heat Pump Chiller

Capacity control with 4 no. scroll compressors

Reverse cycle heat pump capability

Operates in ambient temperatures of up to +45°C

Celsius Hire 300KW HEAT PUMP CHILLER is a compact, small footprint unit, selected due to its flexibility and handling across a variety of applications.

The heat pump chillers from a refrigerant circuit of R410A/R454B and has 4 no. scroll compressors. This allows 25-100% capacity control for smaller and variable heat loads. The unit Is complete with a flow switch and associated safety switches.

The chiller is a reverse cycle heat pump unit, meaning it can be switched between cooling and heating mode, or automatically change based on an ambient air temperature probe.

The 300KW heat pump chiller can connected directly onto the clients water/glycol circuit or be coupled with Celsius Hire’s large range of fleet and ancillaries to be provide heated, air conditioned or low temperature environments.

The chiller is a reverse cycle heat pump unit, meaning it can be switched between cooling and heating mode, or automatically change based on an ambient air temperature probe.

The 125KW heat pump chiller can connected directly onto the clients water/glycol circuit or be coupled with Celsius Hire’s large range of fleet and ancillaries to be provide heated, air conditioned or low temperature environments.

Download PDF

Call Celsius Hire for your quote on 0800 702 2161

300KW Heat Pump Chiller Specification

Cooling Capacity	290KW
Heating Capacity	310KW
Design Fluid Flow	15.0L/S / 8.0L/S
Internal Pump	No
Temperature Range (Fluid Leaving)	-12°C - +50°C
Size	3380mm x 2280 mm x 2450mm
Weight (DRY)	2,510KG
Electrical Supply Voltage	410V
Max Running Current	197A (per phase)

Download PDF
